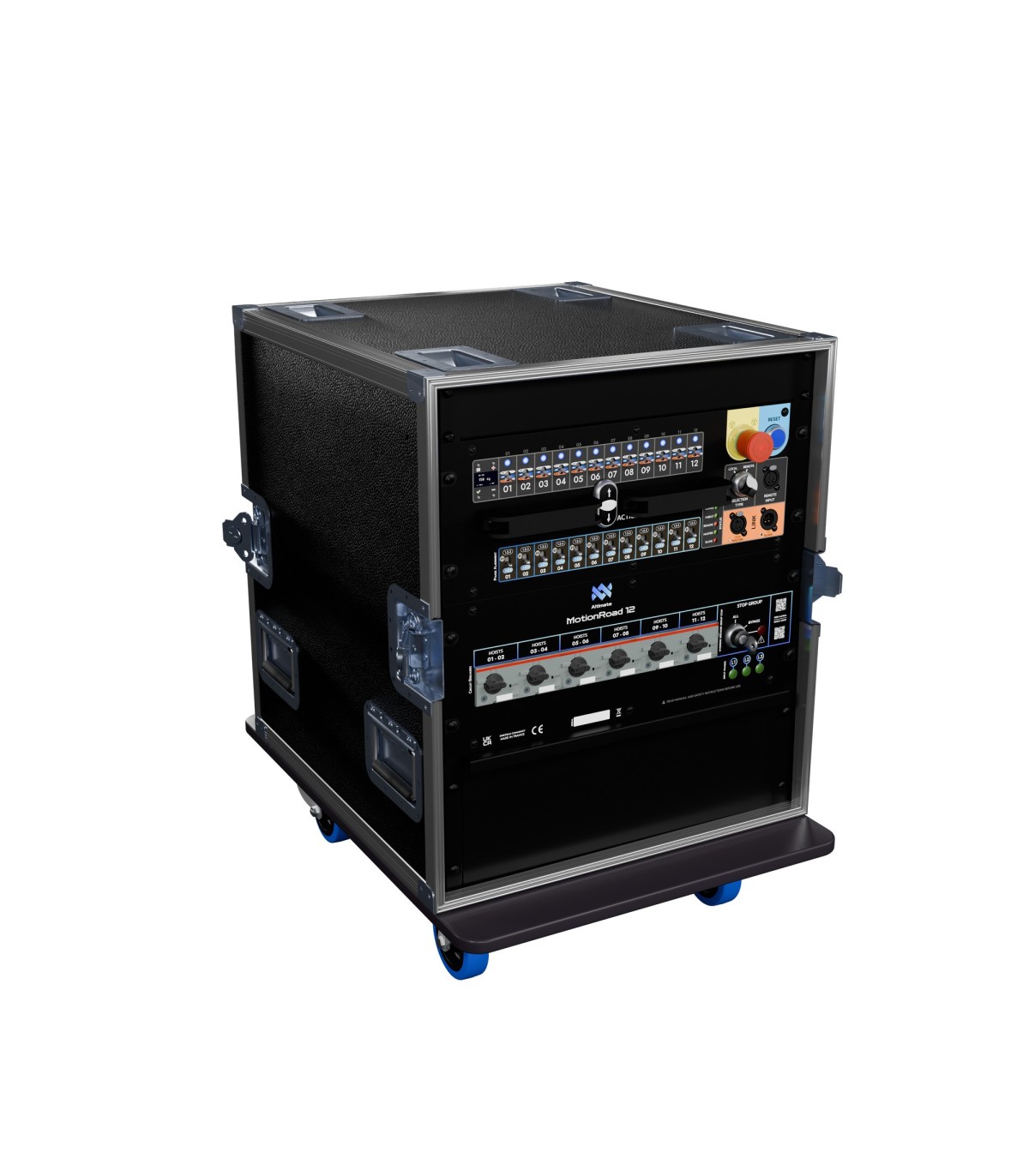

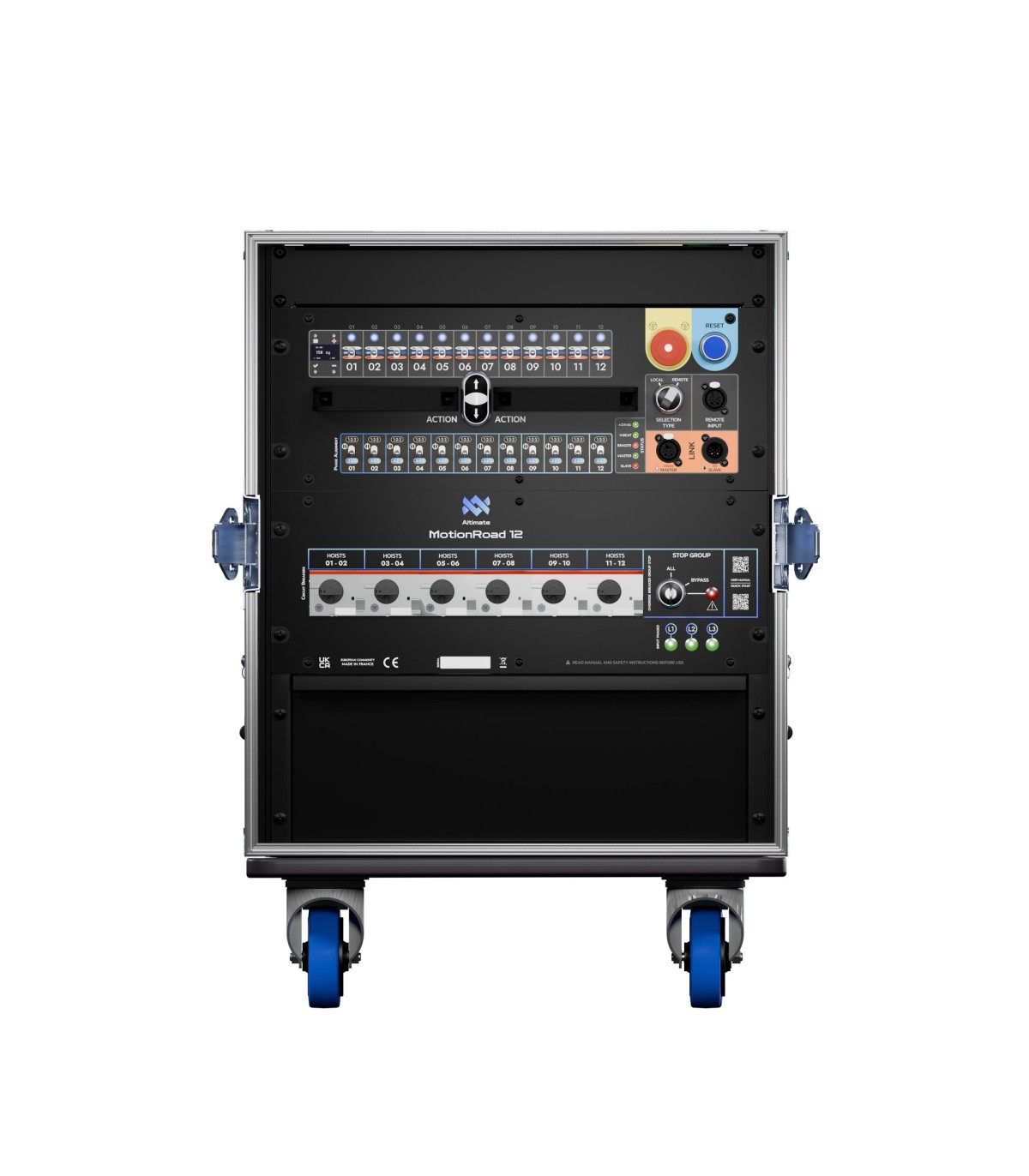

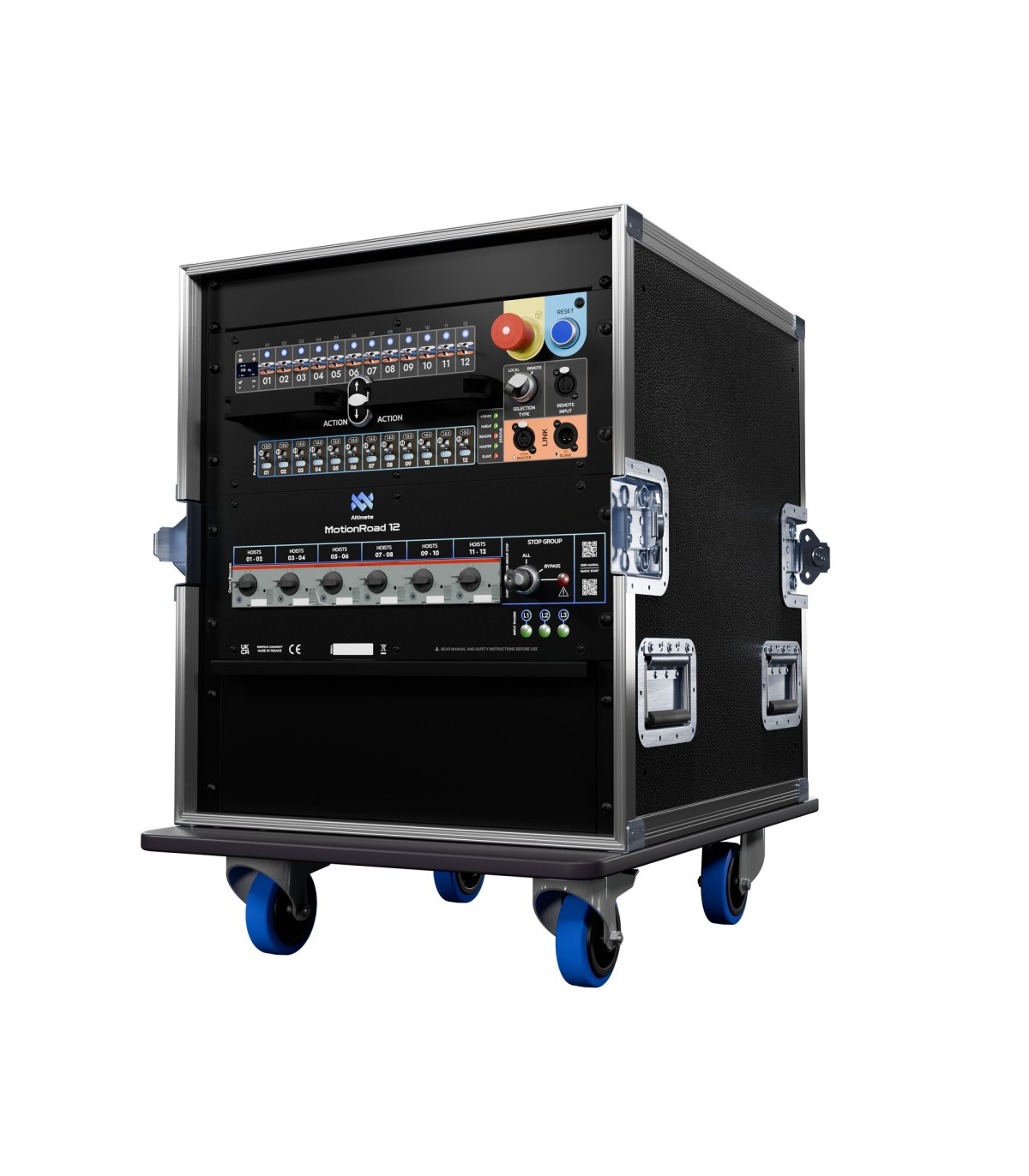

MotionRoad 12
Advanced hoist controller for touring applications - 12 channels DC
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
If you want the best possible tool to setup your stage wherever you go, look no further !
Designed closely with our customers, this controller has an incredible set of features that can be
extended with future firmware update. It has not only flexible control and connection possibilities,
but small feature that make all the difference when the schedule is tight !
·
Individual or group control of 12 DC electric chain hoists or lifting unit like winches.
·
Controllers can be linked with our digital link system for master slave connection up
to 128 simultaneous channels.
·
Thermal-magnectic circuit breakers to protect hoists from surges and short-circuit.
·
Group stop if a breaker of the controller or linked system trips, with key for by-pass function.
·
Reset button proceeds to internal checks and makes sure the operator has been made aware an emergency stop happened before the system can be operated again.
·
32A power input, with power out to daisy chain several controllers for power supply
(63 or 125A available on request).
·
Automatic phase alignment of the power input and individual phase alignement of the power output.
·

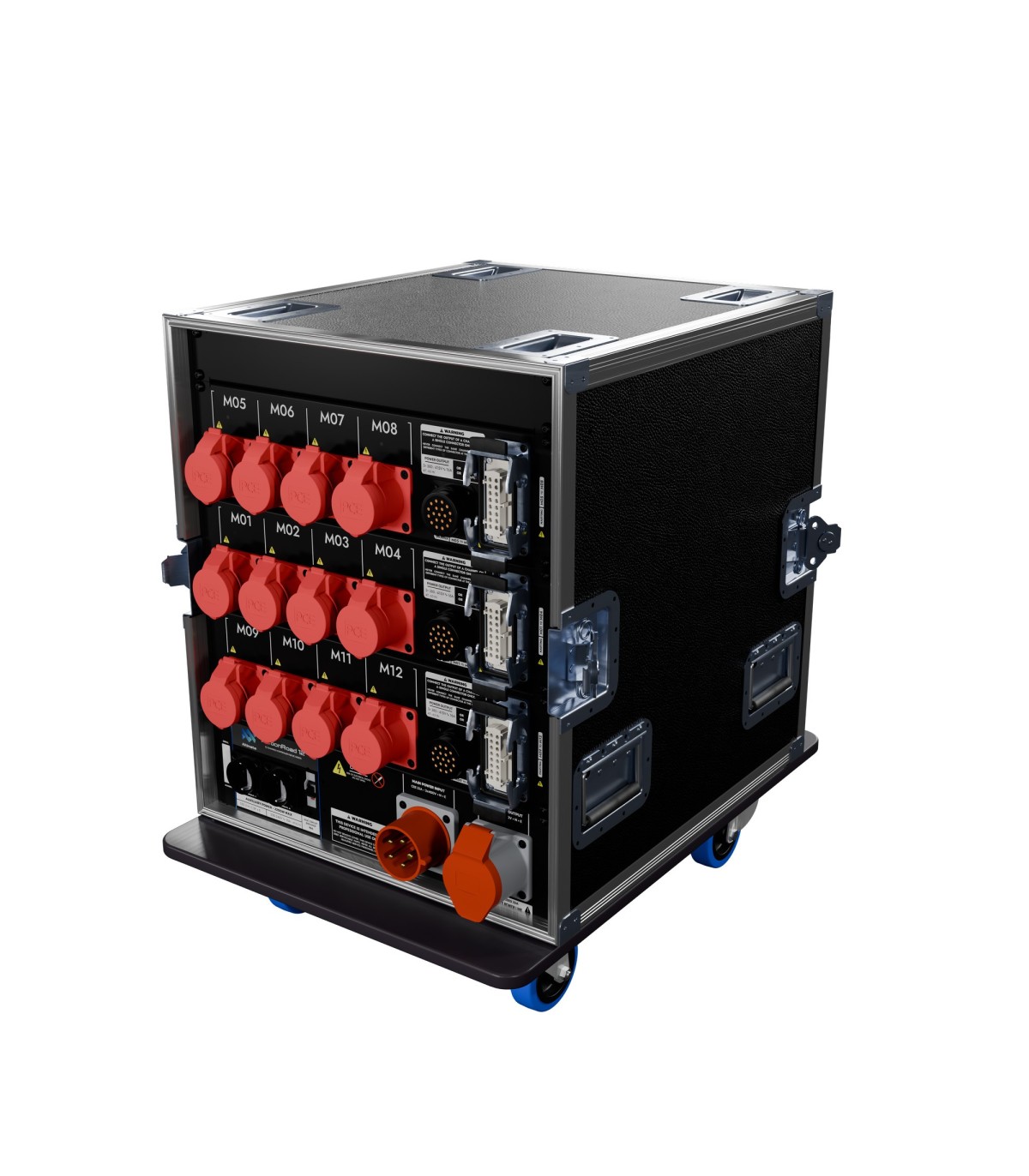

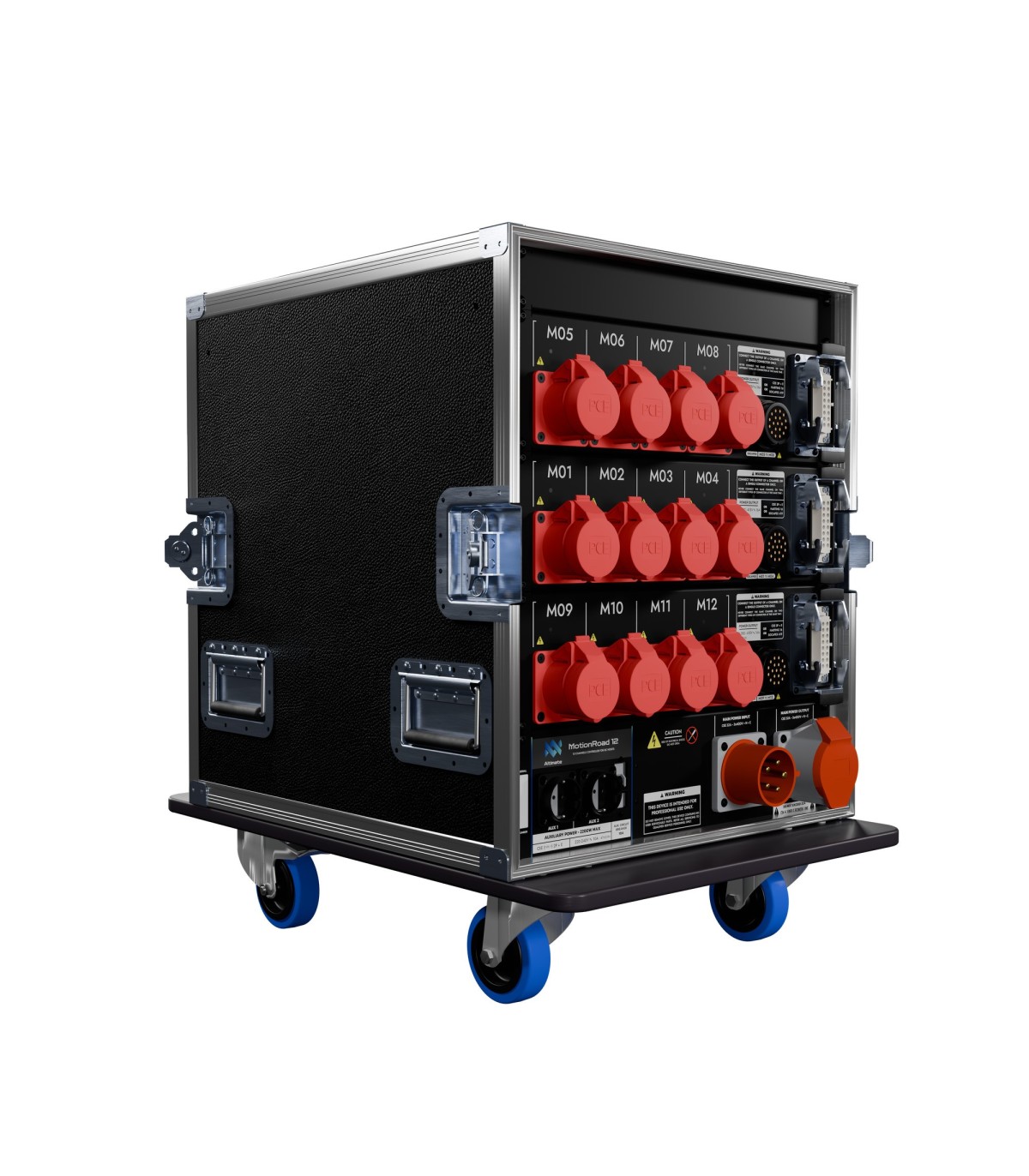

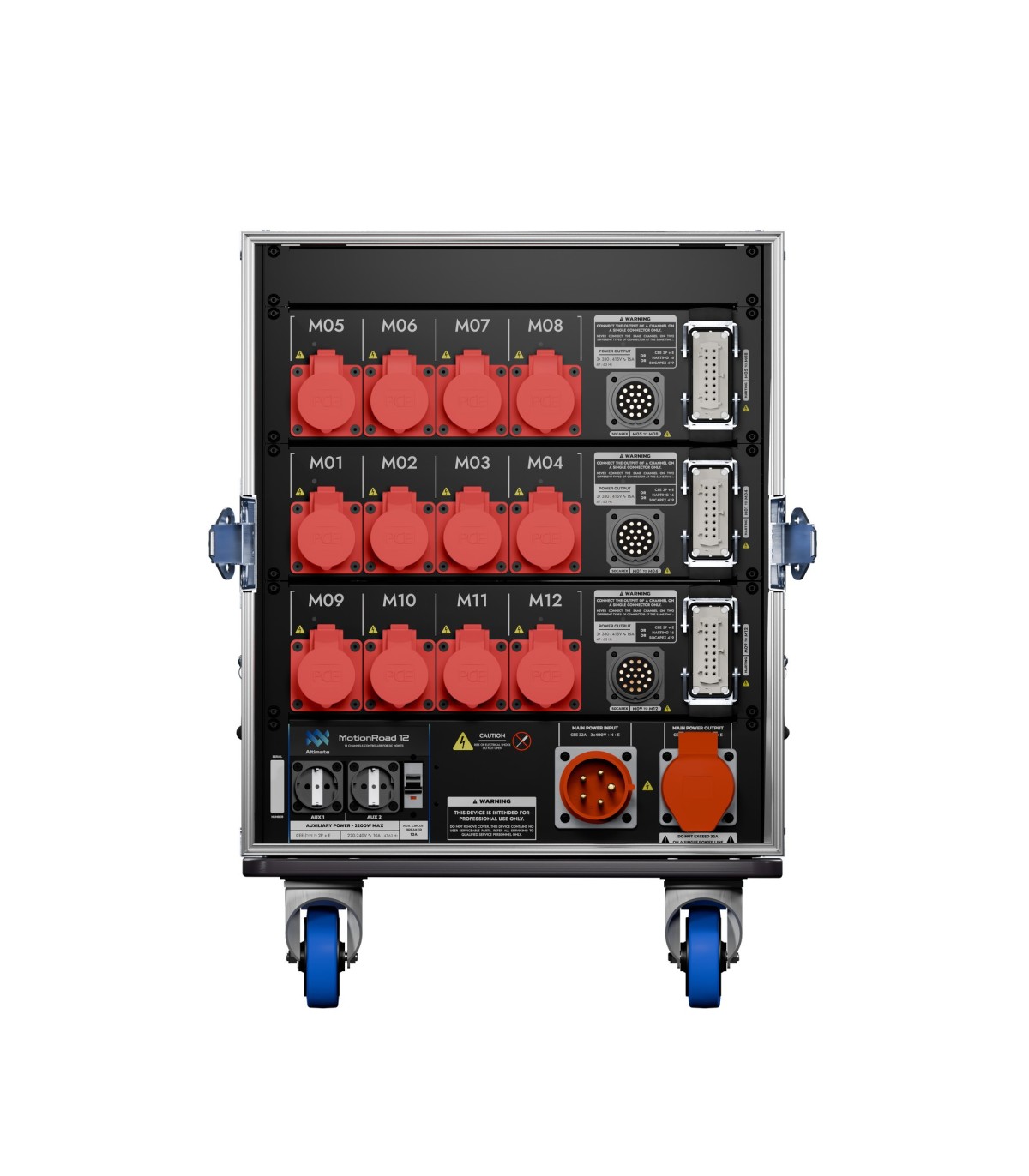

Multistandard outputs CEE, Harting and Socapex as standard on direct control to suit every configuration (other configuration available on request).
·
Built-in a 14U premium case on wheels (2 with brakes) with a 4U drawer
to store the remote, radio receiver and cables.
·
2x AUX 230V power output for any device such as laptop, phone...
Data sheet
- Dimensions
- 82 x 55 x 60 cm
- Number of channels
- 12
- Power input
- 32A
- Hoist control type
- Direct Control
Wireless control
Link system
Hybrid contactors
Group selection
